Fully Automatic Earloop Mask Making Machine

Fully Automatic Earloop Mask Making Machine

1. Introduction

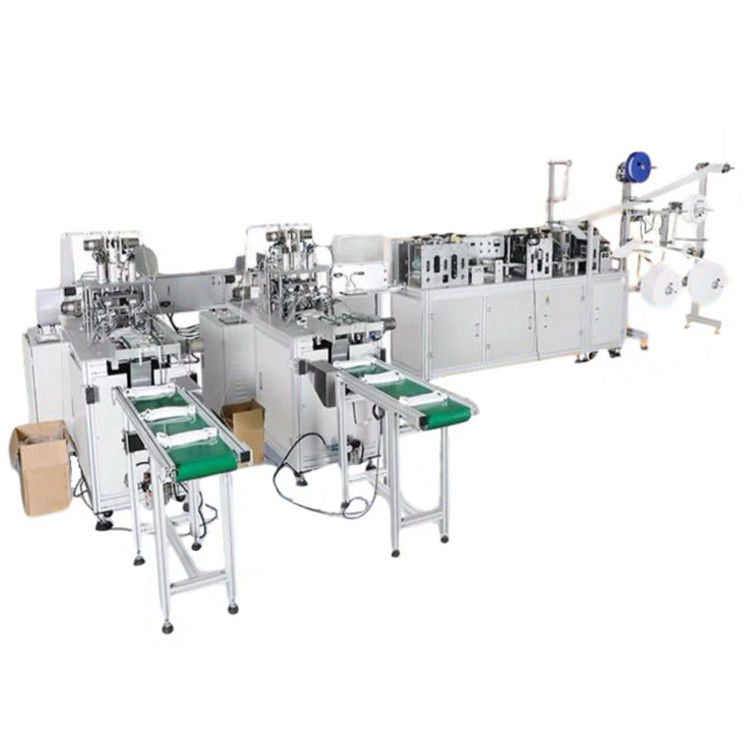

This machine is mainly used for automatic forming of flat mask. Unwinding the whole roll of cloth, automatically folded and wrapped; unwinding the whole roll of rubber strip, cut to fixed length and then put into the wrapped cloth; both sides sealed by ultrasonic welding machine; then cut to form; send the mask to ear belt welding stations. Then collect the completed mask by laminating machine.

PRODUCT DETAIL

1. Mitsubishi PLC motor:
Precise control of mask machinery or process by digital or analog input/output.

2. SMC cylinder:
Drives the machine for linear reciprocating motion, swinging and rotating motion, saving manpower.

3. Titanium alloy mold :
High temperature resistance, strong hardness, good corrosion resistance, long service life.

4. SMC solenoid valve:
Prevent solenoid valve leakage plug, leakage easy control, improved safety performance.

5. Earloop welding device:
Ultrasonic system to complete the mask ear band welding, accurate alignment and high efficiency. .

6. Control panel:
Humanized design, easy to operate accurately.

7. Transmission device:
Used for conveying finished products, high efficiency and fast, save time and labor.

Installation and configuration

(1) Dimension: 6800mm(L)×3600mm(W)×1900mm(H)(Slight change in actual size);

(2) Weight: ≤2100kg,the ground load-bearing>300KG/M²;

(3) Power: 220VAC±5%,50z,rated power 11kW ;

(4) Air compression:0.5~0.7MPa,rate of flow,300L/min;

(5) Environment: Temperature 10~35℃,humidity -35%HR, No flammable or corrosive gas, no dust (cleanliness no less than 100000).

 2. Main Structure

3. Applicable Material and Specifications

3.1  Applicable Material

3.2 Mask Specifications

Standard: 175*90mm(nonwoven cloth no more than 3 layer,subject to actual product)

4. Technical Parameter
