Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis | After Warranty Service: | Video Technical Support |
|---|---|---|---|
| Condition: | New | Power(W): | Customized |
| Dimension(L*W*H): | 1350*700*1150mm | Weight: | 2500kg |
| Warranty: | 2 Years | After-sales Service Provided: | Free Spare Parts, Video Technical Support |
| Key Selling Points: | Automatic | Product Name: | Mask Making Machine |
| Name: | Fully Automatic Face Mask Making Machine | Keywords: | Surgical Mask Making Machine |
| Application: | Making Disposable Face Mask | Product: | Machine For Making Face Mask |
| Type: | Mask Making Machine Disposable Surgical | After-sales Service: | Service Machinery Overseas |
| Feature: | High Production Efficiency | Machine Type: | Automatic Disposable Nonwoven Face Mask Machinery |
| Mask Type: | Medical Surgical Disposable Face 3 Ply Non Woven Mask | Automatic Grade: | Automatic |
| Voltage: | 220VAC | Production Capacity: | 250000pcs/day |
| High Light: | 3 Ply Surgical Face Mask Making Machine,Ultrasonic Surgical Face Mask Making Machine |
||
1. The automatic mask making machine is automatic from material feeding to mask collection.
2. High automation in ear-loop welding, edge wrapping, counting, and material discharging. The ultrasonic technique does no harm to the characteristic of the material. Easy and safe operation.
3. Artistic and durable, aluminum alloy board, lean and practicality.
4. Faster, Rotary connection device of Independent innovation design.
5. More stable, upgraded machine, touch screen, Taiwan photoelectric detection, stable performance, and low failure rate
|
Raw materials : |
PP chips ,two layers of non-woven ( 3 layers optional ) |
|
Middle layer |
Meltblown cloth |
|
Nose bridge silk strip : |
PP 5.0mm*0.55mrr |
|
Earband : |
Round Diameter 2.5-3mm |
|
Mask size : |
standard size: 175*95mm |
|
Capacity : |
Mask body making speed 70-90 pcs/min; Ear loop welding total speed 50-70 pcs/min. |
|
Voltage : |
220v/380v,50hz ,9kw |
|
Control system |
PLC control system |
|
Compressed air |
0.6-0.7Mpa/cm² |
|
Electric parts |
Schneider or Omron famous brand |
|
Kind remind: (1) when machine working, it need 1-2 professional engineer to look and insure machine working in order. More professional, more speed. (2) The client's technicians must have general mechanical and electrical knowledge, so that communication is easier, and our company engineers can better guide you to install and adjust the machine to best working condition. |
|

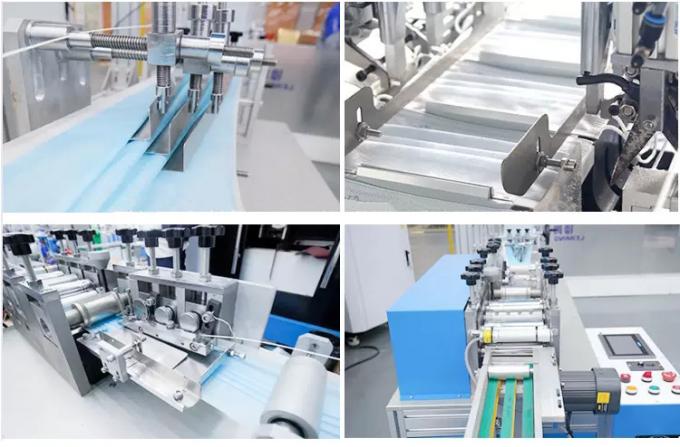

This machine is mainly used for the automatic forming of flat masks: the whole roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; the entire length of the bridge is pulled and unrolled. Ultrasonic welding to the seal, then ultrasonic side sealing, cutting and shaping with a cutter; conveying the mask to the two mask earband welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the mask is made, The pipeline is transported to the flat belt line for collection.
