Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Automatic Grade: | Automatic |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Condition: | New |
| Application: | Nonwoven Fabric Disposable Machine | Name: | Disposable Mask Making Machine |
| Machine Type: | Disposable Nonwoven Machinery | Product Name: | Automatic Disposable Non-Woven Face Mask Making Machine |
| Final Products: | Disposable Face Masks | Color: | Customizable |
| Size: | 6500 (length) * 3500 (width) * 1950 (height) | ||
| High Light: | Nonwoven Medical Face Mask Making Machine,Earloop Medical Face Mask Machine |
||

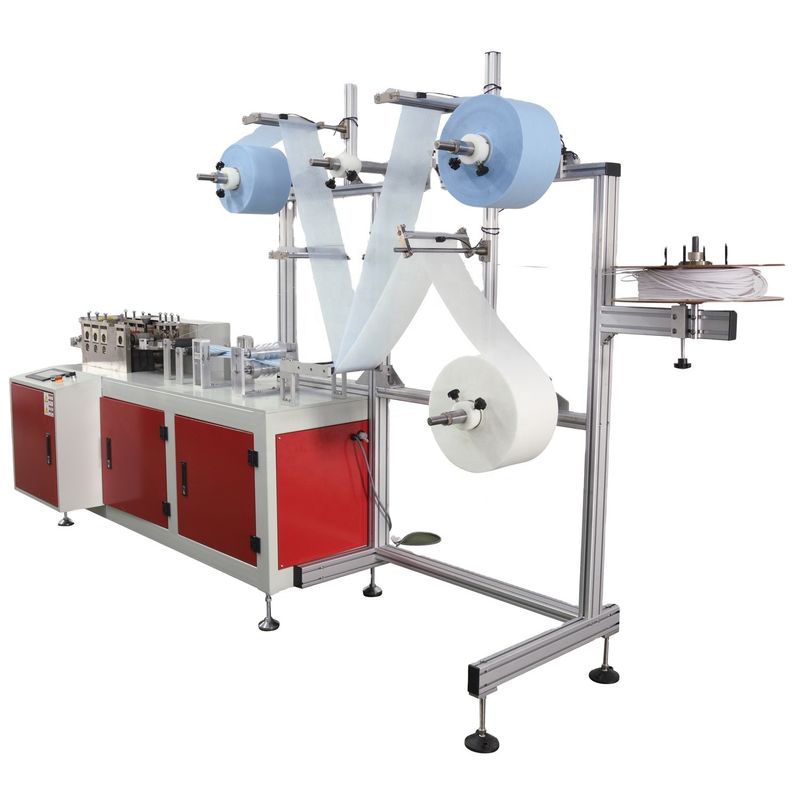

Earloop Flat Nonwoven Medical Face Mask Making Machine
Equipment introduction
The device is flat mask automatic production, mainly contains the coiled material feeding, folding synthesis, on the bridge of the nose reinforcement materials, masks, masks, cutting, ear wear and welding, finished product blanking process, from coil raw material to mask the whole production process of products, production of mask have to wear comfortable, no pressure.
Application: Suitable for the production of disposable face mask
Technical Data:

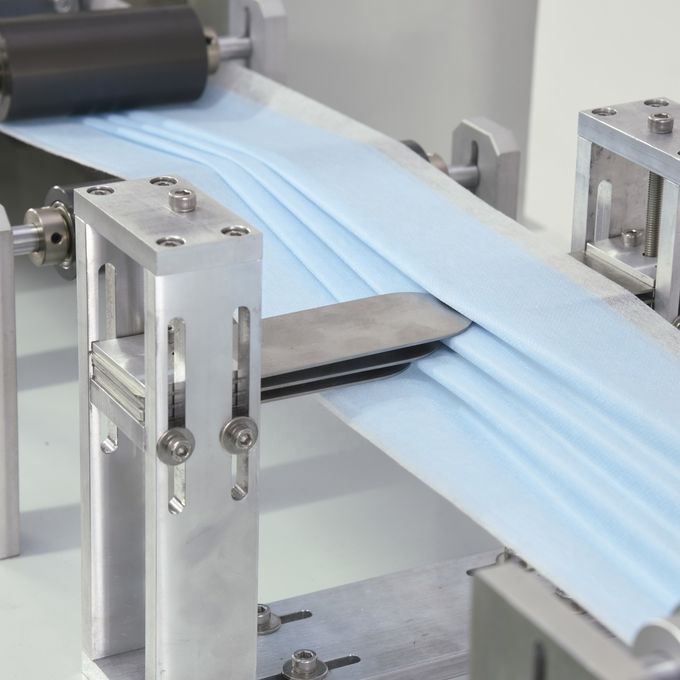

1. Auto-align three rolls of material to be feed in, the Outer, Filter and Inner layers. Symmetrically both sides pressing with ultrasonic continuously. With continuous roller press then cut.
2. Production adopted the "1 + 2" theory, a main set of mask making system, and 2 seperate welding machine. To ensure the high production, one minute 120pcs.
3. Earloops finished by ultrasonic cutting and welding automatically on the auto welding machine.
4. Nose-bridge can be made with auto feeding, cutting and ultrasonic welding.
Technical Parameters
Import raw materials, automatic feeding, nose line cutting / feeding, hemming welding, folding scene, forming welding, photoelectric detection, automatic slicing, finished product output, receiving tray sorting, full automation
|
No. |
Name | Parameter |
| 1 | size | 6500 (length) * 3500 (width) * 1950 (height) |
| 2 | Weight | Total equipment weight ≤5000KG Ground load 3500KG / ㎡ |
| 3 | Color | Color Sheet metal warm gray 1C, primary color of aluminum profile |
| 4 | Working power supply | 220VAC ± 5% 50HZ grounding protection Rated power ≤10KW (including welding machine) |
| 5 | Compressed air | 0.4-0.6MP (clean water after dewatering, no oil, filtration, pressure stabilization), use flow rate is about 300L / min |
| 6 | Production efficiency | ≥100PCS/min |
| 7 | The product qualification rate | 99% (except for the original material and human operation) |
| 8 | Main accessories | Cylinder: AirTAC Screw guide rail: HIWIN / TBI PLC: Mitsubishi or Xinjie |
| 9 | Operating environment | General workshop environment is acceptable (no corrosive odor, no dust) |
|
Item |
Material | Specification | Coil outer diameter | Coil inner diameter |
| 1 | Outer non-woven fabric | 200mm wide roll material | Recommended less than 600mm | greater than 65mm |
| 2 | Inner layer non-woven fabric | 190mm wide roll material | Recommended less than 600mm | greater than 65mm |
| 3 | Melt tape | 175mm wide roll material | Recommended less than 600mm | greater than 65mm |
| 4 | Nose bridge strip | 3.0mm wide roll material | Recommended less than 400mm | greater than 65mm |
| 5 | ear straps | 2.8mm round coil |
Feature
1. Aluminium alloy structure is adopted, which is beautiful and firm without rust.
2. Computer PLC programming control, high stability, low failure rate and low noise.
3. Servo motor imported from Taiwan, stepper motor drive, high precision.
4. Photoelectric detection of raw materials to avoid mistakes and reduce waste.
5. This equipment can supply 2 inner ear strap machines or outer ear strap machines.
6. The machine adopts pulleys and fixed feet, which is convenient and fast to move, strong in fixation and unshakable.
7. This model is equipped with a new advanced conveyor belt, which automatically collects products with high accuracy, and only needs to be sorted and packed.
