Product Details:
Payment & Shipping Terms:
|
| Name: | Surgical Face Mask Making Machine | Power Input: | 220V / 50Hz |
|---|---|---|---|
| Product Size: | 175*95mm | Warranty: | 12 Months |
| Feature: | High Degree Of Automation | Product Type: | Mouth Cover |
| Condition: | New | Automatic Grade: | Automatic |
| Applicable Industries: | Manufacturing Plant,Home Use,Restaurant,Hotels | Final Products: | Disposable Face Masks |
| Raw Material: | Non Woven Fabric | Type: | Earloop Face Mask Machine |
| High Light: | Non Woven Face Mask Production Line,Surgical Face Mask Production Line |
||

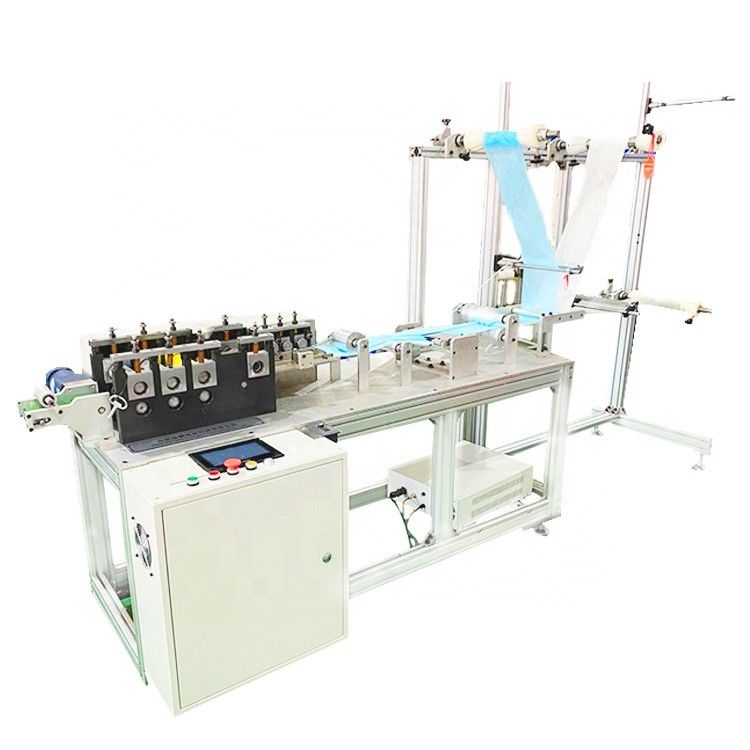

3 Layers Non Woven Surgical Face Mask Production Line
Raw Materials
1. Produce non woven face mask blank(body) automatically from raw material roll width 180-200mm, 10-20gsm;
2. Inserting nose wire, then forming, sealing and cutting---finished mask blank;
3. The size of mask blank is 175(L)*90(W)mm, other specifications according to customers;
4. 3 layers available.
Features:
1. The automatic all-in-one outer earloop face mask making machine is automatic from material feeding to mask collection.
2. High automation in ear-loop welding, edge wrapping, counting and material discharging. Ultrasonic technique does no harm to characteristic of material. Easy and safe operation.
3. Artistic and durable, aluminum alloy board, lean and practicality.
4. Faster, Rotary connection device of Independent innovation design.
5. More stable, upgraded machine, MITSUBISHI PLC control system, touch screen, Taiwan photoelectric detection, stable performance and low failure rate.
6. Exquisite, adopt quality pressing device and prevent tilting alloy horn, durable and long service life, beautiful welding effect.
parameters :
| Control system power | 1 Phase 220V / 50HZ |
| Air Pressure | 0.6Mpa |
| Power supply | 3Phase 380V 50HZ |
| servo motor | Domestic quality |
| Control System | PLC |
| sensor | Omron, Seak |
| Pneumatic Components | SMC Yadek |
| Operation screen | 10 inch capacitive screen |
| Bearing | NSK |
| Lead screw | Hiwin |
| Security | Safety light grid |
| Equipment structure | 2 ply |
| equipment power | 8.5KW |
| equipment weight | about2.6T |
| Driven | Ordinary motor + servo |
| Number of applicable layers | 3-layer |
| Applicable materials | PP, non-woven fabric, synthetic fiber |
| Processing methods | Ultrasonic welding |
| Finished product specifications | 175*95mm |
| Technical characteristics | |
| 1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed. 2. The production line adopts the structure of 2ply, with high production efficiency 3. Nose clips and ear loop are automatically cut and welded by ultrasound 4. Automatic counting and palletizing after welding earbands |
|
Advantages :
Price Term
1. Above price is quoted based on FOB Shenzhen China
2. Payment term: 30% down payment, the balance paid before delivery
3. Delivery time: Within 25 workdays after received 50% down payment
4. COUNTRY OF ORIGIN: China
5. MARKING: Notice by buyer
6. PACKING: Wooden Pallet

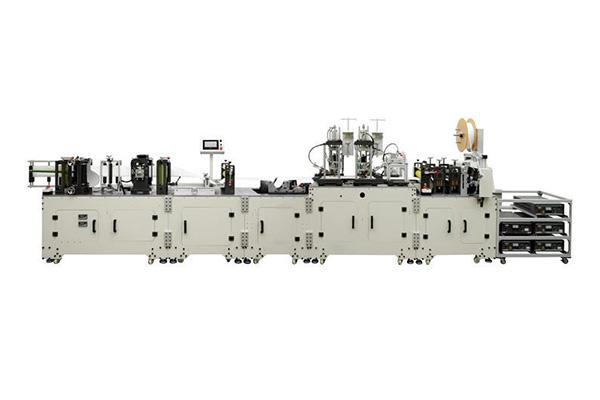

Face Mask Manufacturing Machine Details
