Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis | After Warranty Service: | Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service |
|---|---|---|---|
| Condition: | New | Power(W): | 10kw |
| Dimension(L*W*H): | 6000*5000*1900mm | Weight: | 3000kg |
| Warranty: | 2 Years | Key Selling Points: | Low Maintenance Cost |
| Product Name: | Automatic Mask Production Machine | Usage: | Mask Production |
| Voltage: | 220V, 220V | Color: | Grey |
| Automatic Grade: | Automatic | Production Capacity: | 100 Pcs/min |
| High Light: | 4 Ply Surgical Face Mask Making Machine,High Speed Surgical Face Mask Making Machine |
||

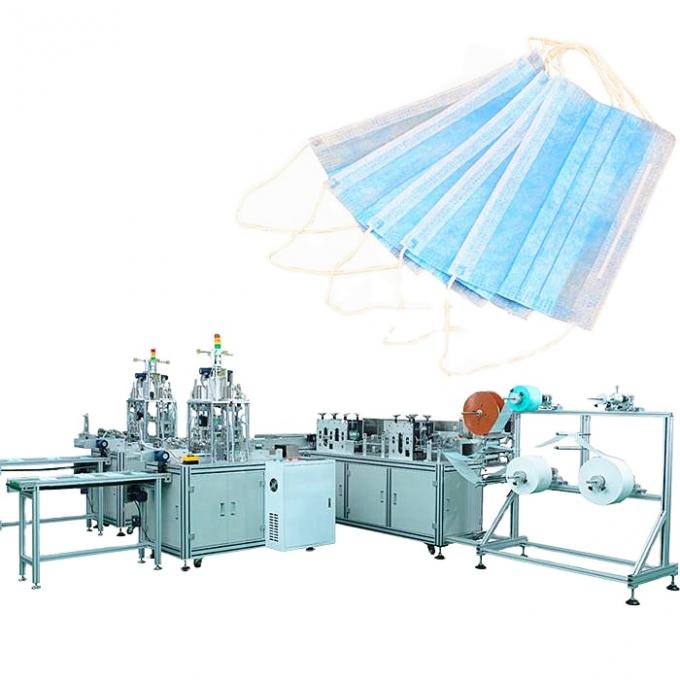

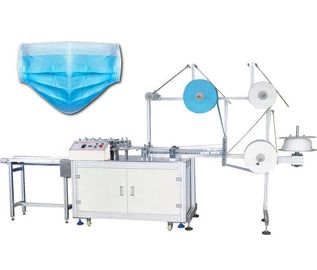

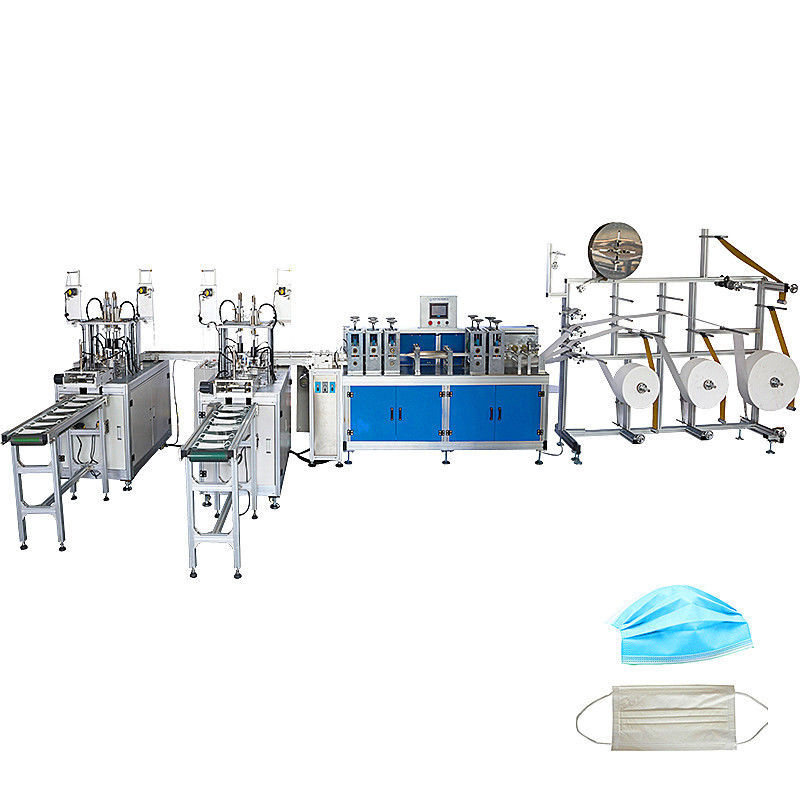

3 Ply 4 Ply High Speed Surgical Face Mask Making Machine
Description:
This surgical face mask making machine mainly produces plane mask, which consists of one mask forming unit and 2 earloop welding units.
Feeding of raw material roll, nose clip inserting and cutting, ultrasonic fusion, automatic mask cutting, earloop feeding and welding are completed automatically. 2-4 layers masks (without edge sealing) can be customized and it features in stable performance, simple operation and high quality.
Technical Feature:
1, Three rolls of fabric enter the equipment at the same time
2, Using ultrasonic technology, the surface layer, filter layer, and bottom material are automatically bonded. Then the creases, trimming, shaping and cutting of the outlet cover body are automatically pressed.
3, Through the conveying system, it is automatically distributed to the left and right sides.
4, At the same time through the photoelectric detection, the ear hook, the ultrasonic cut of the nose line, and spot welding are made to be permanently attached or buried inside the mask body.
5, With automatic output, it realizes a line of automatic operations from feeding to finished products, with an efficiency of up to 100 pieces per minute, helping the transformation and upgrade of intelligent production of face masks.
Technical Parameters:
|
Product name |
Full-automatic High Speed disposable three-layer mask machine (outer ear type) |
|
Finished products specifications |
175mm*95mm |
|
The finished product process |
Three - layer adhesive tape nose line with hanging ear optional with printed LOGO |
|
Production capacity |
100 pieces/min |
|
Material used |
20-30 Gram weight PP Non-woven composite fibre |
|
Suitable for layer |
3-4 Layers |
|
control mode |
PLC Display and touch Screen |
|
Air pressure |
7kg/cm2 |
|
Power |
10kw |
|
Ultrasonic wave |
20KHZ |
|
Power supply |
220V/50HZ |
|
Floor Space |
6000*5000*1900mm |
