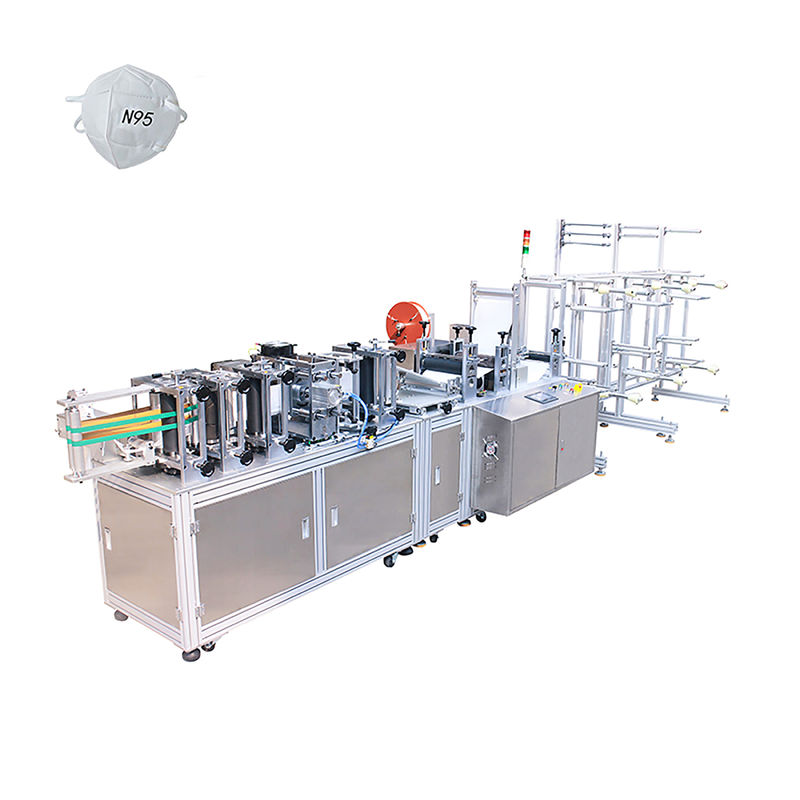

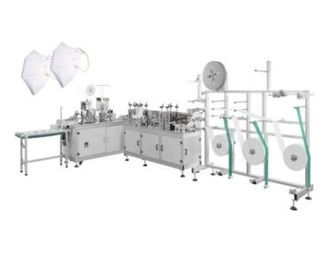

Automatic N95 Mask Making Machine

Automatic N95 Mask Making Machine

What is automatic face mask making machine

We know that the medical mask is composed of the mask body and ear band, the traditional medical mask machine is made of a machine that produces the mask body, which is then welded by the inner/outer ear loop welding machine. In order to realize the perfect cooperation between the machine and the automatic weld ear loop, also achieve maximum efficiency of the production line, we need to link one mask blank machine and one ear loop welding machine work together.

Face Mask Manufacturing Machine Features:

• Computer program control, high output, good stability and low failure rate.
• photoelectric detection of raw materials to avoid errors and reduce waste.
• It can produce one to four layers of mask body.
• The machine has the function of total count and batch count. The number of batch count can be set arbitrarily.
• Replacing the mold can produce masks of different sizes and styles.
• the whole machine adopts aluminum alloy structure, beautiful and sturdy.

Technical parameters:

Imput raw materials, automatic feeding, nose line cutting / feeding, hemming welding, folding scene, forming welding, photoelectric detection, automatic slicing, finished product output, receiving tray sorting, full automation

Equipment use matters needing attention:

The machine should be installed on a flat and solid ground, and sufficient operation and maintenance space should be reserved around the machine

5.1 Environmental conditions

1. Temperature: The normal ambient temperature must be 5°C ~ 40°C.

2. Humidity: 30% ~ 90%.

3. Keep away from paint (gasoline), chemicals, acid, alkaline and explosive or flammable materials.

4. Avoid neighbouring machines that can cause vibration. Ambient lighting: above 300LUX

5.2 Installation notes

1. After the machine is positioned, adjust the foot cup of the machine and use the horizontal auxiliary tool until it is adjusted to the level.

2. Connect the power cord. This machine uses 220V single-phase, 50HZ power. It is strictly prohibited to connect 380V or other power sources that do not meet the requirements. Please pay special attention to the user! To ensure safety, the connection work must be completed by an electric professional, and a connection cable is provided. If self-equipped power plug is used, 2.5mm2 three-core cable must be used to correctly connect live wire (L), neutral wire (N) and ground wire (E).
