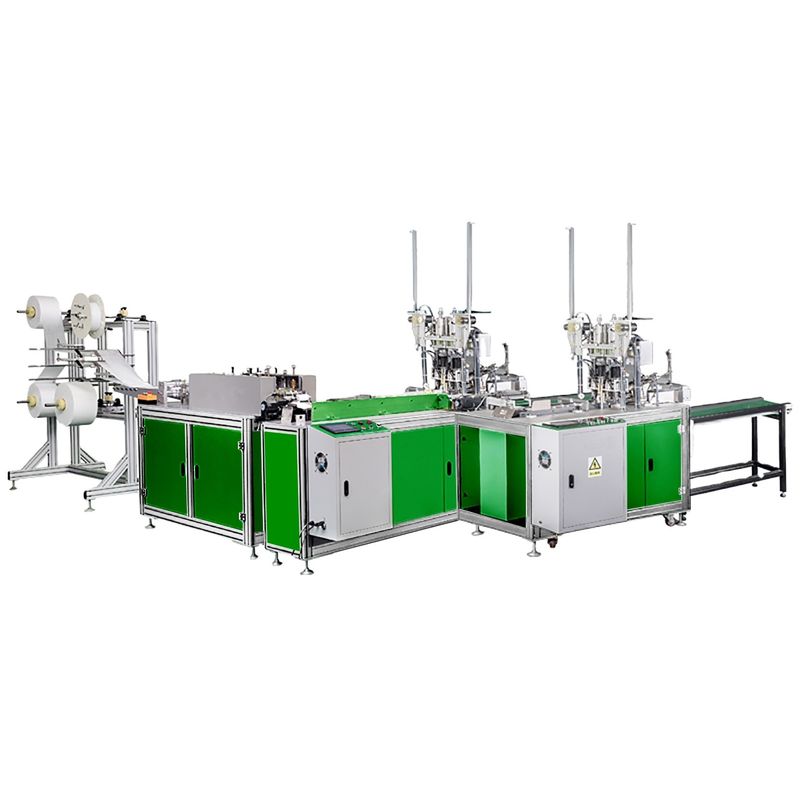

Earloop Surgical Face Mask Making Machine
-
-
Large Image :
Earloop Surgical Face Mask Making Machine
|
Product Details:
| Place of Origin: |
China |
| Brand Name: |
OEM |
| Certification: |
CE/ISO/ROHS |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 set |
| Price: |
Negotiable |
| Packaging Details: |
Special wooden case packing |
| Delivery Time: |
15-20 days |
| Payment Terms: |
L/C, T/T, Western Union |
| Supply Ability: |
10 sets/ month |
|
Detailed Product Description
| Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertis |
After Warranty Service: |
Video Technical Support, Online Support, Spare Parts |
| Condition: |
New |
Dimension(L*W*H): |
120*50*50 |
| Weight: |
1200 |
Warranty: |
1 YEAR |
| After-sales Service Provided: |
Video Technical Support, Online Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
Key Selling Points: |
Automatic |
| Equipment Size: |
7000mm(L)*4000mm(L)*2000mm(H) |
Equipment Weight: |
≤1500kg, Ground Bearing Capacity> 300KG / E |
| Working Power: |
220KVA, 50z |
Compressed Air: |
0.5 "0.7MPa, Using Flow Rate Of About 300L / Min |
| Perating Environment: |
Temperature 1035 ℃, Humidity 5-35% HR |
After-sales Service: |
Negotiatable |
| Capacity: |
60-80pcs/min |
Feature: |
High Production Efficiency |
| Final Products: |
Disposable Surgical Face Mask |
Product Name: |
Flat Mask Making Machine |
| Video Outgoing-inspection: |
Provided |
Machinery Test Report: |
Provided |
| Marketing Type: |
New Product 2020 |
Warranty Of Core Components: |
1 YEAR |
| Core Components: |
Motor |
Automatic Grade: |
Automatic |
| Voltage: |
220 |
Production Capacity: |
60-80pcs/min |
| Highlight: |
Earloop Surgical Face Mask Making Machine, Fully Automatic Surgical Face Mask Making Machine, Flat Surgical Face Mask Making Machine |
Earloop Surgical Face Mask Making Machine
Product Description
This machine is a fully automatic machine to produce the outside ear-loop face mask, including 1of set mask body machine and 1 set of ear-loop welding machine. The process is from raw material feeding, nose wire welding&ear-loop welding to finished products.
This machine is mainly used for the automatic formation of flat masks: the entire roll of fabric is driven by rollers after
unwinding, and the fabric is automatically folded and hemmed; the entire length of the nose bridge is pulled and unrolled, cut to length and imported into the hemmed fabric, bilaterally Ultrasonic welding to the seal, then ultrasonic side sealing, cutting with a cutter: the mask is conveyed to the two mask earband welding stations through an assembly line, and the final mask is formed by ultrasonic welding. When the mask is made, it passes the assembly line. Conveyed to flat belt line for collection.
Specification
|
Equipment size:
|
(L)5370*(W)2700*(H)2050
|
|
Equipment weight
|
≤1500kg, ground bearing capacity> 300KG / e
|
|
Working power:
|
220KVA, 50-60HZ
|
|
Compressed air:
|
0.5 "0.7MPa, using flow rate of about 300L / min
|
|
Perating environment:
|
temperature 1035 ℃, humidity 5-35% HR, no flammable, corrosive gas, no powder (cleanliness no less than 100,000).
|
|
Product name
|
Flat Face Mask Machine One drag One
|
|
Certification
|
ISO 9001
|
|
Production speed
|
65~75pcs/min
|
PRODUCT PROCESS
The face mask making machine is mainly used for the automatic making of flat masks: the whole roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed; Bridge of nose strip whole roll traction unroll,cut to length and guide into hemmed fabric. Two sides Ultrasonic welding to the seal, then ultrasonic 2 ends sealing, cutting and shaping by a cutter; conveying the mask to the two mask ear band welding stations through an assembly line, and finally forming the mask by ultrasonic welding; when the mask is made, it is transported to the flat belt line for collection. Complete line include 1 set mask body making machine and 2 sets ear loop automatic welding machine.
FAQ
1. Q:Can you supply One Drag one Flat N95 3 ply 3ply ffp3 face mask making machine for ?
A:Yes
2. Q:How about the aftersales services?
A:We can provide one year warranty since shipment from china port. If the machine has any problems during the warranty time, we can provide telphone and video support.
3. Q:Can you send technical engineers to our location?
A:We are sorry to say that we can't send technician for installation machine and commission in buyer’s factory. But will provide machine operating manual and machine disassemble video for reference.
