Ultrasonic Earloop N95 Non Woven Mask Making Machine

I'm Online Chat Now

Ultrasonic Earloop N95 Non Woven Mask Making Machine

China Ultrasonic Earloop N95 Non Woven Mask Making Machine supplier
Ultrasonic Earloop N95 Non Woven Mask Making Machine supplier Ultrasonic Earloop N95 Non Woven Mask Making Machine supplier Ultrasonic Earloop N95 Non Woven Mask Making Machine supplier Ultrasonic Earloop N95 Non Woven Mask Making Machine supplier Ultrasonic Earloop N95 Non Woven Mask Making Machine supplier

Large Image :  Ultrasonic Earloop N95 Non Woven Mask Making Machine

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: CE/ISO/ROHS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Special wooden case packing
Delivery Time: 15-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets/ month
Contact Now
Detailed Product Description
Applicable Industries: Home Use After Warranty Service: Video Technical Support, Online Support
Condition: New Power(W): 15KW
Dimension(L*W*H): 8700(L)x1600(W)x2200(H) Weight: 1500kg
Warranty: 1 YEAR After-sales Service Provided: Video Technical Support, Online Support
Key Selling Points: Automatic Product Name: Face Mask Making Machine
Keywords: N95 Mask Making Machine Capacity: 20-30 Pcs/min
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: New Product 2020 Warranty Of Core Components: 1 YEAR
Core Components: Motor Automatic Grade: Automatic
Voltage: 380v Port: Qingdao
High Light:

N95 Non Woven Mask Making Machine

,

Ultrasonic Non Woven Mask Making Machine

Ultrasonic Earloop N95 Non Woven Mask Making Machine


Product Description
1. Slicing Machine:
First, place the raw materials (260mm wide), 50g pp spunbonded non-woven fabric, 45g hot air cotton non-woven, 35 meltblown nonwoven, 35g pp spunbonded non-woven fabric in the material rack;And the semi-finished mask is produced after the automatic printing, automatic wearing of nose strips and automatic cutting.
2. Ear ribbon welding machine:
Place the semi-finished mask on the mold of the Ear ribbon welding machine, start the switch, the mold rotates automatically and complete the earband welding of the mask by ultrasonic welding technology.
3. Sealing side machine:
Place the N95 Mask on the edge sealer mould after welding the ear band, sealing side machine completes the last process of the mask by ultrasonic welding technology-welding edge banding, and completes the production of the finished mask.

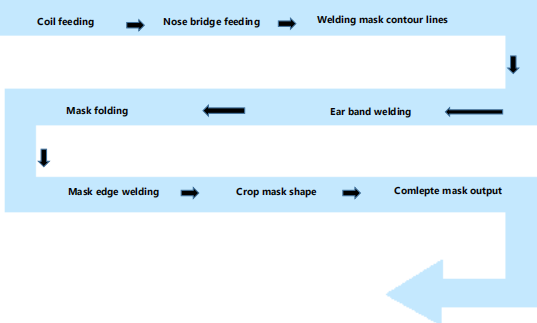

Machine production process:

Ultrasonic Earloop N95 Non Woven Mask Making Machine 0

Material processing parameters:


Speed

20-30 pcs / min

Standard

4 Ply

PP spunbonded non-woven fabric

50g

Hot air cotton non-woven

45g

Melt-blown nonwoven

35g

PP spunbonded non-woven fabric

35g

Ear line size

3-5mm width

Nose bridge strip

Double core metal strip 5mm

Voltage

380V 50Hz




Technical Data

Equipment Size

8700(L)x1600(W)x2200(H)

Equipment weight
≤5000kg, ground load ≤500KG / m2
Working voltage
380V
Compressed air
0.5 ~ 0.7 MPa, the use flow rate is about 300L / min
Operating environment
temperature 10 ~ 35 ℃, humidity 5-35% HR, no flammable, corrosive gas, no dust
(Cleanliness is not less than 100,000)
Total power
15KW
Volume of production
1800 pieces/hour
  Operator
1 person [additional staff of 1-2 for temporary model]


Product Advantage


1. Aluminum alloy body, beautiful and firm
2. Photoelectric detection reduces the failure rate
3. Motor control, stable and reliable
4. PLC control, stable performance
5. Structure limit, easy to adjust
6. Pneumatic control, high efficiency and environmental protection

7. The automatic intelligent design with fast speed, 100-120pcs/min
8. One person can operate multiple machines, improve production efficiency and reduce labor cost.
9. Three tension control for 3 layer fabric or more.
10. Fabric diameter less 1 meter.
11. Machine has alarm if material finished.

Ultrasonic Earloop N95 Non Woven Mask Making Machine 1
