Product Details:
Payment & Shipping Terms:
|
| Production Efficiency: | 20-40PCS/min | Working Power Supply: | 220VAC ± 5% 50HZ |
|---|---|---|---|
| Main Accessories: | Cylinder: AirTAC Screw Guide Rail: HIWIN / TBI PLC: Mitsubishi Or Xinjie | Automatic Grade: | Semi-Automatic |
| Material: | Nonwoven Fabric | KEY SELLING POINTS: | High-accuracy |
| Name: | N95 Face Mask Making Machine | Warranty: | One Year |
| Mask Types: | Flat-Fold | Control: | PLC Control |
| Welding Method: | Ultrasonic Welding | Usage: | Hospital, Public |
| High Light: | Hospital N95 Face Mask Making Machine,Folding N95 Face Mask Making Machine |
||

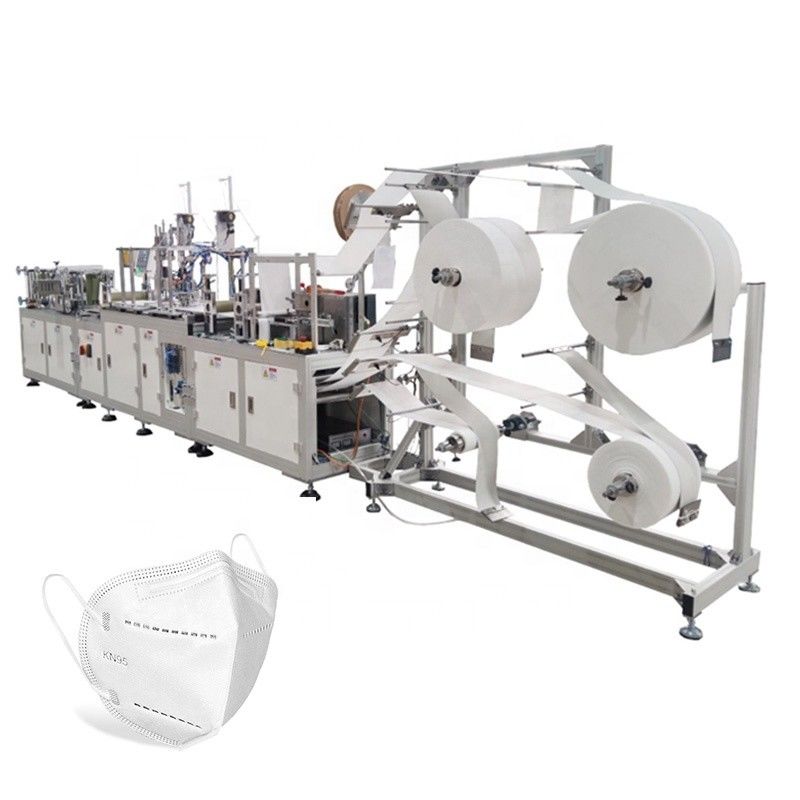

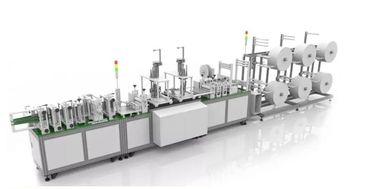

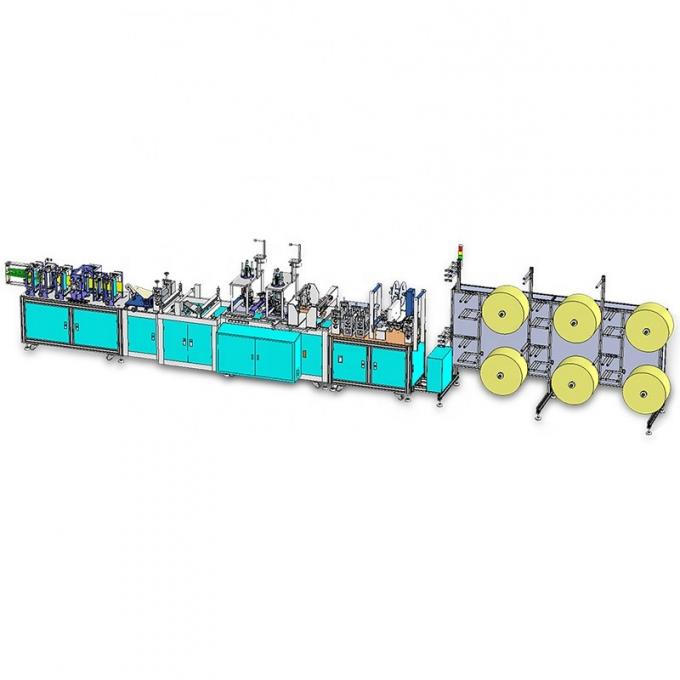

Non Woven Hospital Folding N95 Face Mask Making Machine
process
The semi-automatic production line by the former process (first step) after ontology machine and process automation (including sealing side machine/welding bridge of the nose of machine/welding machine ears) set of lines.
First of all, the operator will expect the first working procedure on shipping/location of automation machine piece of ontology, through ontology machine finish after the piece.
Then by operator receiving station and transfer, point that the sealing side, through the manual sealing side machine complete sealing side. By operators material-collecting, shunt to the welding of bridge of the nose bar location, through the manual welding machine to complete the bridge of the nose.
Then by the operators material-collecting, shunt to weld ear with location. Through manual operation of the lug belt welding machine to complete the lug belt spot welding.
Finally by the operator to collect, tidy up and transferred to the next procedure for operation.
Semi-automatic Film machine introduction
The equipment solves the defects of the current fully automatic line, which is difficult to operate and has a high defect rate. The equipment only needs 1 person, using the touch screen method, manual and automatic switching. Automatically built nose bridge, knurling, rolling cutting are achieved
Product Features
1. Adopt open design, good window.
2. Man-machine combination, debugging and easy maintenance.
3. Easy to operate, low cost, strong and durable.
technical parameter
| No. | Name | Parameter |
| 1 | Type | 2AT.JZKZHRDBZD-A |
| 2 | Size | 370 (length) * 80 (width) * 150 (height) |
| 3 | Weight |
Total equipment weight ≤ 200KG Ground load 200KG / ㎡ |
| 4 | Working power supply | 220VAC ± 5% 50HZ grounding protection Rated power ≤10KW (including welding machine) |
| 5 | Compressed air | 0.4-0.6MP (clean water after dehydration, no oil, filtration, pressure stabilization), use flow rate is about 300L / min) |
| 6 | Production efficiency | 20-40PCS/min |
| 7 | product qualification rate | 99% (except for the original material and human operation) |
| 8 | Main accessories | Cylinder: AirTAC Screw guide rail: HIWIN / TBI PLC: Mitsubishi or Xinjie |
| 9 | Operating environment | General workshop environment is acceptable (no corrosive odor, no dust) |
