Product Details:
Payment & Shipping Terms:
|
| Features: | Open Design With Good Windows | Production Efficiency: | 20-40PCS/min |
|---|---|---|---|
| Operating Environment: | General Workshop Environment (no Corrosive Odor, No Dust) | Type: | 2AT.JZKZHRDBZD-A |
| Dimensions: | 700(length)*600(width)*1500(height) | Weight: | Total Weight≤200KG Table Loading Capacity 200KG/㎡ |
| Application: | Disposable Nonwoven Fabric Product | Keyword: | Semi Automatic |
| Mask Material: | Non-woven Fabrics | Material: | Stainless Steel + Aluminum Alloy |
| Control: | Control + Touch Screen | Feature: | High-accuracy |
| High Light: | Elastic Mask Ear Loop Welding Machine,3 Ply Mask Ear Loop Welding Machine |
||

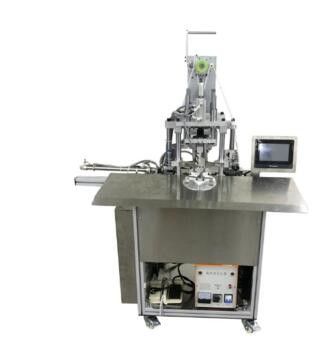

3 Ply Non Woven Fabrics Elastic Mask Ear Loop Welding Machine
Product Introduction
The mask ear loop welding machine can automatically cut and weld the ear loop to the mask body to make a complete finished mask.
Capacity: about 30 ~ 35 pieces / min (related to the ability of commissioning personnel); Work flow: manually put the mask body on the machine, automatic induction, automatic transport, automatic cutting and welding of the ear loop
Feature
Multifunction
One machine multi-purpose, inner and outer ears can be welded, the length of the ear band can be adjusted.
Single Operator
Small machines, small area, one person can operate, save time and effort.
Stable Performance
With wire-feeding structure, automatic rotation without wear and tear, not stuck wire, long service life.
Touch Screen Control
Simple operation interface, convenient.
Technical Parameter
Number | Name | Parameter |
| 1 |
Type | 2AT.JZKZHRDBZD-A |
| 2 |
Dimensions |
700(length)*600(width)*1500(height) |
| 3 | Weight |
Total weight≤200KG Table Loading Capacity 200KG/㎡ |
| 4 |
Working Power |
220VAC±5% 50HZ Ground Protection
Rated power≤10KW(including machine) |
| 5 |
Compressed Air |
0.4-0.6MP (Clean air after removing water, no oil, filtration, stabilized pressure) Operation flow about 300L/min |
| 6 |
Production Efficiency | 20-40PCS/min |
| 7 |
Product Qualification Ratio | 99% (Original material and manual operation are excluded)
|
| 8 |
Primary Attachments |
Air cylinder:AirTAC Screw guide rail:HIWIN/TBI PLC:Mitsubishi or Thinget |
| 9 |
Operating Environment |
General workshop environment (no corrosive odor, no dust) |
