Product Details:
Payment & Shipping Terms:
|
| Materials: | Non Woven Fabric, Melt Blown Woven | Power Supply: | 220V/50HZ |
|---|---|---|---|
| Working Efficiency: | 98% | Power: | 10-12 Kw |
| Compressed Air: | 0.5-0.7Mpa | Weight: | 1600 KG |
| Size: | 4200mm (L) X 1100mm (W) X 2200mm (H) | Control Method: | PLC Display Touching Screen |
| Suitable For Layers: | 3-4 Layers | Production Capacity: | 100-120 Pcs / Minute |
| Finished Product Specifications: | 175mm X 95mm | Automatic Grade: | Automatic |
| High Light: | Fully Automatic Face Mask Making Machine,Non Woven Automatic Face Mask Making Machine |
||

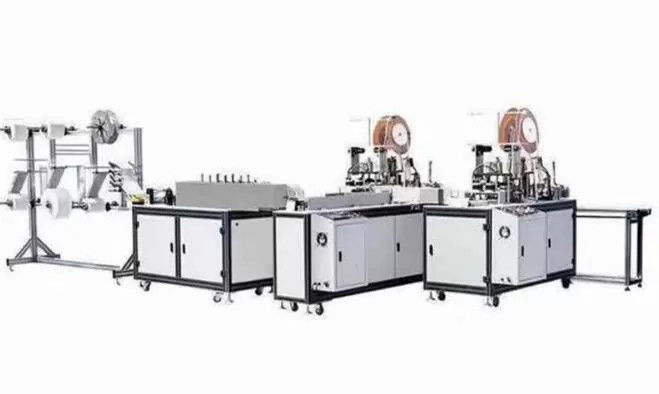

Non Woven Disposable Fully Automatic Face Mask Making Machine
Technical Description
| Name | Fully automatic three-layer mask making machine (outer ear type) |
| Finished product specifications | 175mm x 95mm |
| Finished product technology | Three-layer bonding, with nose thread, ear Haning type |
| Production capacity | 100-120 pcs / minute |
| Use materials | 20-30 gram PP non-woven fabrics |
| Suitable for layers | 3-4 layers |
| Control method | PLC display touching screen |
| Power | 10-12 kw |
| Supersonic wave | 20 KHZ |
| Voltage | 220v / 50hz |
| Equipment size | 4200mm (L) x 1100mm (W) x 2200mm (H) |
| Equipment weight | 1600 KG |
| Working voltage | AC220V, 50 / 60HZ |
| rated power | 4KW |
| Compressed air | 0.5-0.7Mpa |
Description :

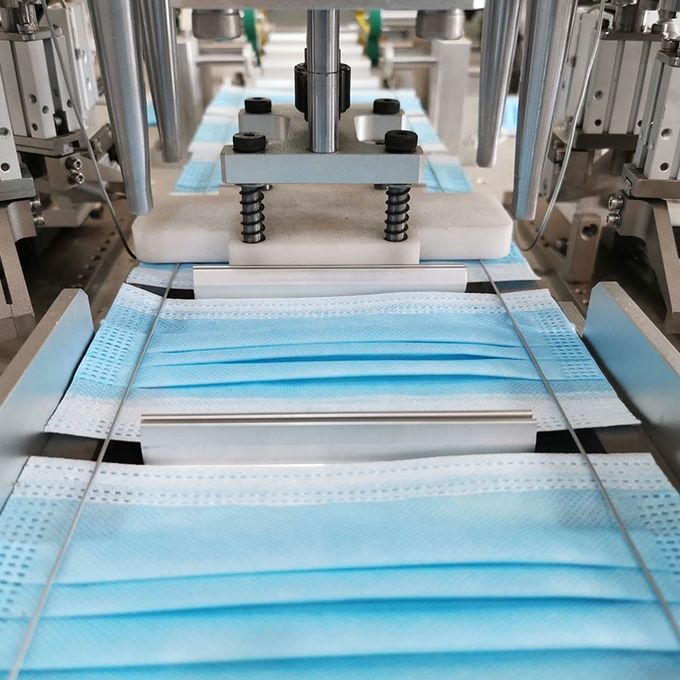

This Disposable Non Woven Face Mask Making Machine is a fully automatic one-to-two mask machine, one body machine drives two ear band machines. After the main body machine outputs the mask body, the mask body sheet is conveyed to the turning mechanism by a conveyor belt structure. The reversing mechanism is used to flip the mask plate onto the belt connected to the ear band machine, and then the mask sheet is conveyed to the first mask plate on the front of the ear band machine through the conveyor belt, and finally the mask sheet is placed on the ear band by the cylinder pressing In the mask plate of the machine, the ear band machine is used to complete the welding of the ear bands of the mask and the edging, thereby completing the production of an ear band mask product. This machine adopts PLC, touch screen control, single-phase motor for main conveyor belt, stepping motor turning, precise transmission, stable control and adjustable speed.
Features:
1. High stability, low failure rate, beautiful appearance without rust.
2. Computer PLC programming control, servo drive, high degree of automation.
3. Photoelectric detection of raw materials to avoid mistakes and reduce waste.
4. The automatic mask making machine is automatic from material feeding to mask collection.
5. High automation in ear-loop welding, edge wrapping, counting, and material discharging.
6. The ultrasonic technique does no harm to the characteristic of the material. Easy and safe operation.
7. Artistic and durable, aluminum alloy board, lean and practicality.
8. Faster, Rotary connection device of Independent innovation design.
9. More stable, upgraded machine, touch screen, Taiwan photoelectric detection, stable performance, and low failure rate.
