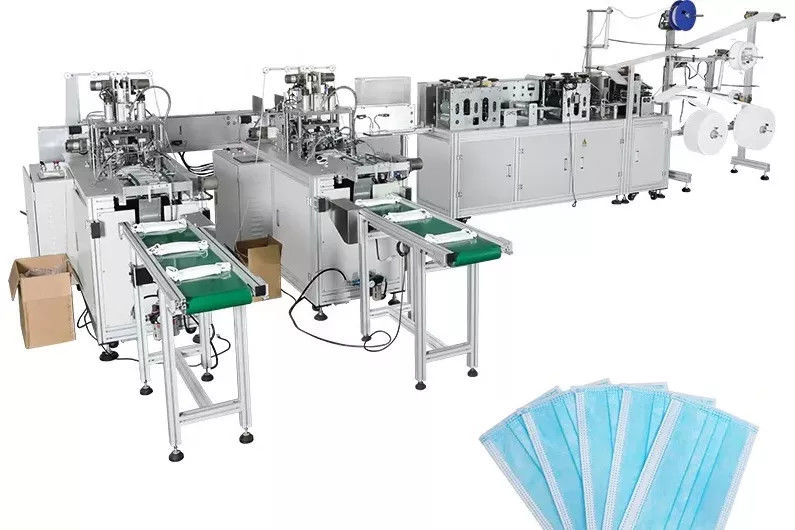

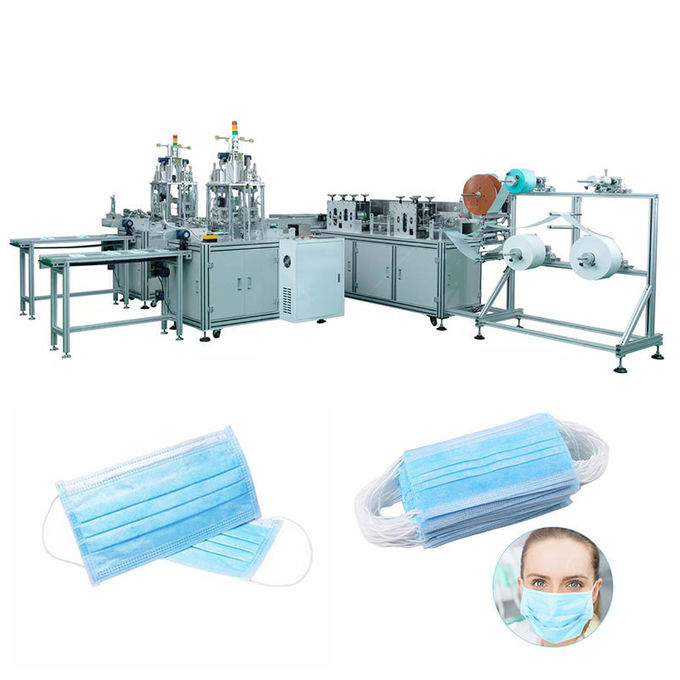

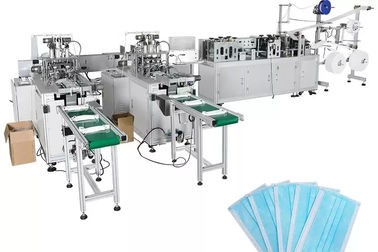

Three Layers Non Woven Earloop Sheet Mask Making Machine

1. Three Layers Non Woven Earloop Sheet Mask Making Machine​

   1.

Equipment characteristics

• The machine adopts aluminum alloy structure, small size, stable operation and low scrap rate;
• With photoelectric detection, automatic counting, can control the production speed and high output;
• It can produce about 100 pieces per minute, and can produce (3-6 layers) multi-layer masks.
• You can adjust the size of the mask blank and the folding location.
• The whole line include face mask blank making machine and outside earloop welding machine


Face mask blank making machine

1. Function:The machine is an automatic machine for producing the main part of the face mask, there is no need labour force because the machine can handle the whole process including feeding,aluminum strip inserting,cutting,folding,ultrasonic fusing,slices. It has a high output.
2. Size: 3345*630*1830mm
3. Output: 120pcs/min
4. Voltage:220V
5. Power consumption: 2.7KW

Raw materials for manufacturing face mask:

Technical Parameters:

1. Equipment size: 6150mm (L) × 3720mm (W) × 1950mm (H) (excluding receiving line)

2. Appearance color: international standard warm gray 1C (DB standard color), according to this standard without special instructions

3. Equipment weight: ≤5000kg, ground load ≤500KG / m2；

4. Working power: equipment 220VAC ± 5 ﹪, 50HZ, rated power about 9KW

5. Compressed air: 0.5 ～ 0.7 MPa, the use flow rate is about 300L / min

6. Operating environment: temperature 10 ～ 35 ℃, humidity 5-35% HR, no flammable or corrosive gas Body, no dust (cleanliness no less than 100,000)

7. Production efficiency: 90-130PCS / MIN;

8. Equipment production pass rate: 99% (except when the incoming materials do not meet the requirements or the employees' improper operation is excluded)

9. Equipment failure rate: 2% (refers to the failure caused by the equipment itself)
