Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Manufacturing Plant | Local Service Location: | None |
|---|---|---|---|
| Showroom Location: | None | Condition: | New |
| Power(W): | 29KW | Dimension(L*W*H): | L 6800 X W 3800 X H 2000 Mm |
| Weight: | 2000kgs | Warranty: | 1 YEAR, One Year |
| Key Selling Points: | Stable Performance | Operation Condition: | Temperature: 25℃±5℃ Humidity:≤40% |
| Ground/floor Loading: | >=750Kg/m | Product Height: | Max . 55mm |
| Output: | 4800 Uph | Air Supplier: | 0.5~0.6MPa |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Not Available |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 YEAR |
| Core Components: | PLC, Engine, Motor | Automatic Grade: | Automatic |
| Voltage: | 3 Phase 5 Lines 380V 60A | Production Capacity: | 29kw |
| High Light: | N95 Automatic Face Mask Making Machine,Welding Automatic Face Mask Making Machine |
||

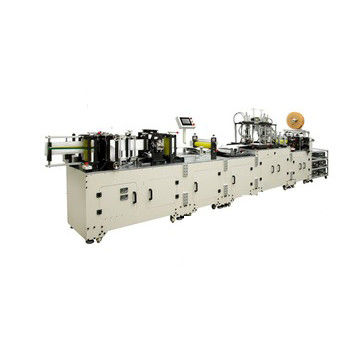

Multi Layer Welding N95 Automatic Face Mask Making Machine
Machine profile
This N95 machine is universal design for the production of non-woven Multi-layer face mask, it is mainly constructed by material feeding, shaping and welding, die cutting, transmission, ear string welding(ESW) and stacking mechanism. Except materials loading to be done by manual, other functions are fully automatically run. It is also could be combined with one, or two ESW stations to setup a line which depends on line speed requirement.
No | Item | Machine with 1 ESW station | Machine with 2 ESW stations | Remark | |
1 | Model no | TWSL-KQZ01 | TWSL-KQZ02 | ESW: Ear string welding | |
2 | Output | 3000 uph | 4800 uph | pcs per hour | |

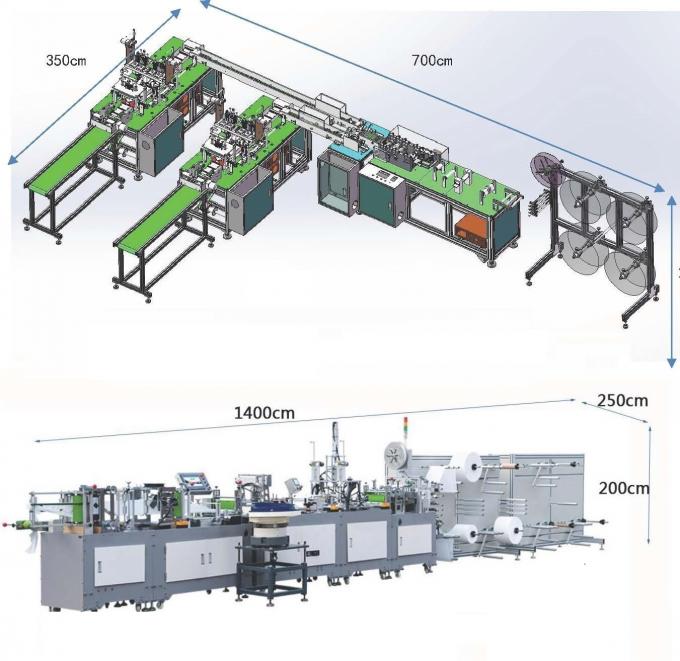

3 | Machine size | L 5100 X W 3800 X H 2000 mm | L 6800 X W 3800 X H 2000 mm | Fig: 2-1& 2-2 | |
4 | Installation space requirement | 8.0m x 5.0 m | 9.0m x 4.5m | To be keep at least | |
5 | Connection | Power supply | 3 Phase 5 lines 380V 60A | 3 Phase 5 lines 380V 80A | The power supply needs a separate switch configured according specific power |
Air supplier | Φ6 air pipe inlet | Φ6 air pipe inlet | |||
6 | Power consumption | Power | 20KW | 29KW | |
Compress air | 0.5~0.6MPa, | 0.5~0.6MPa, | Customer provide | ||
7 | Operation condition | Temperature: 25℃±5℃ |
| ||
8 | Ground/floor loading | ≥750Kg/m² |
| ||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
